Blue Sea 3133 - SMS Panel Enclosure w/Main 3 Branch (12/24V) - 12/24V DC [3133]
![Blue Sea 3133 - SMS Panel Enclosure w/Main 3 Branch (12/24V) - 12/24V DC [3133]](http://costamarinepr.com/cdn/shop/files/94739XL.jpg?v=1780100442&width=3840)
Blue Sea 3133 - SMS Panel Enclosure w/Main 3 Branch (12/24V) - 12/24V DC [3133]
Product Details

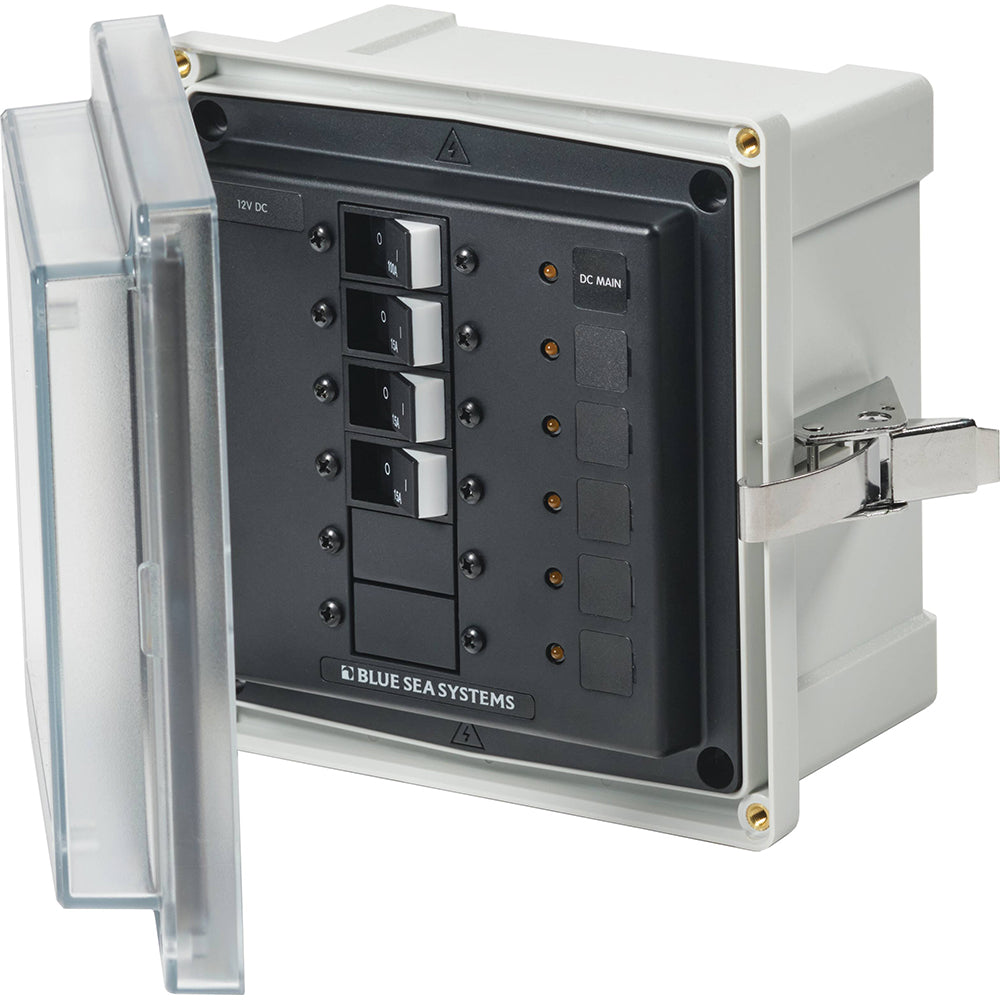

3133 - SMS Panel Enclosure with Main & 3 Branch (12/24V) - 12/24V DC
The 3133-panel enclosure for DC circuit breakers and other large frame devices.
Features:
- Blank apertures for custom breaker loading
- Glass-filled polycarbonate base
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
- Includes waterproof glands
- LED lights for backlighting and ON indication
Technical Specifications:
- Circuit Breaker Type - 1 x 12/24V DC Main and 3 x Branch 12/24V DC (15A)
- Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
- Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
- LEDs Installed - 6 x Amber ON indicating 12/24V DC
In the Box:
- 3133 Enclosure
- Glands x 6
- Labels
- Mounting hardware
- Instruction manual
*Sold as an Individual
Quick Guide (pdf)
Brochure (pdf)
