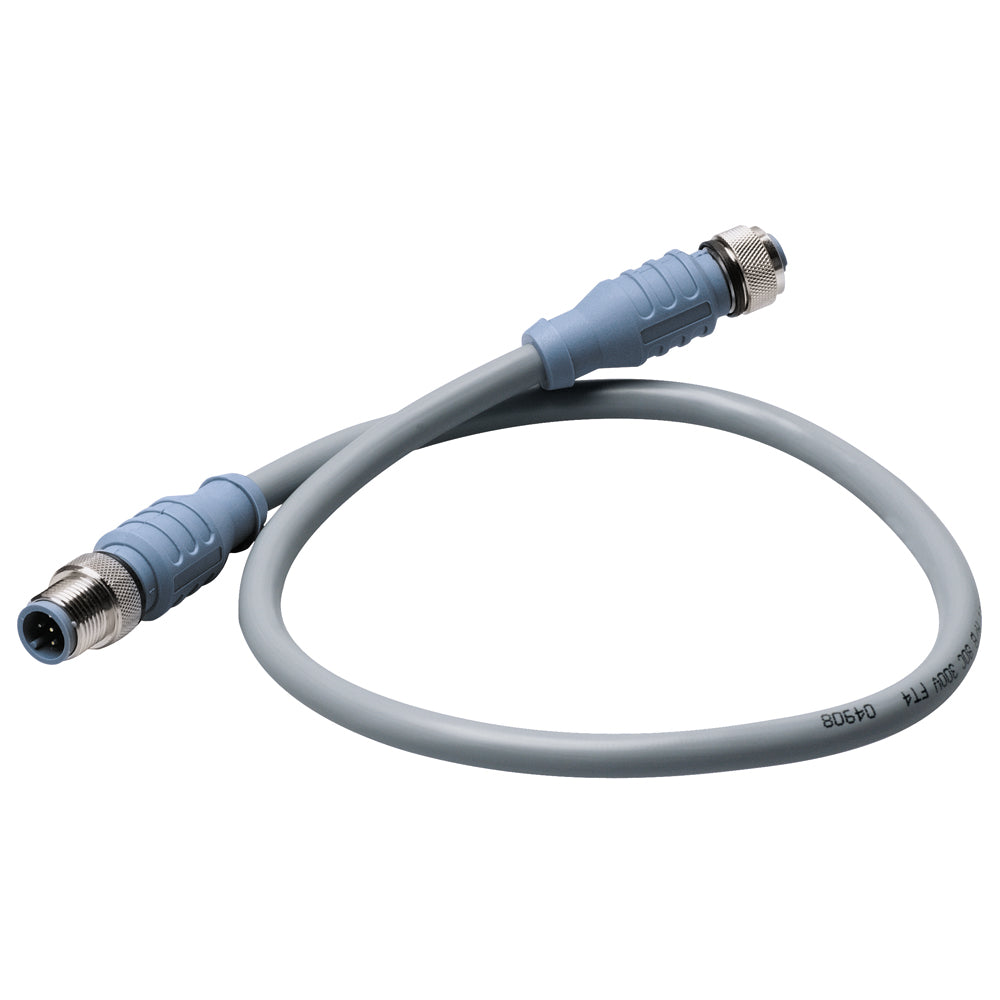

Maretron Mid Double-Ended Cordset - 6 Meter - Gray [DM-DG1-DF-06.0]

Name: Maretron Mid Double-Ended Cordset - 6 Meter - Gray [DM-DG1-DF-06.0]
Brand: Maretron
SKU: CWR-46996
Price: 65.00 USD
Availability: InStock

Maretron Mid Double-Ended Cordset - 6 M Gray

Mechanical:

Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray

Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray

Contact Mat/Plating: Brass/Gold

Coupling Nut Mat/Plating: Brass/Nickel

Connector Outside Diameter: 0.59"

Electrical

Current Rating: 4.0 Amps

Voltage Rating: 250 V

Cable

Outer Jacket Mat/Color: PVC/Gray

Conductor Insulation Material: PE (data pair), PVC (power pair)

Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire

Shielding (3 Levels): Alum/Polyester Foil (Overall), Foil (Power Pair), Foil (Data Pair)

ENVIRONMENTAL

Protection Class: IEC IP68, NEMA 1,3,4,6P

Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

APPROVALS

(Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V

(Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4

NMEA: NMEA 2000 Approved

IEC: IEC 61162-3

Specifications:

Connection Gender: Male-Female
Data Interface: NMEA 2000
Cable Length (Meters): 6m
NMEA 2000 Connectors: Backbone/Drop Cables
Box Dimensions: 2"H x 6"W x 6"L WT: 1.45 lbs
UPC: 873804001821
