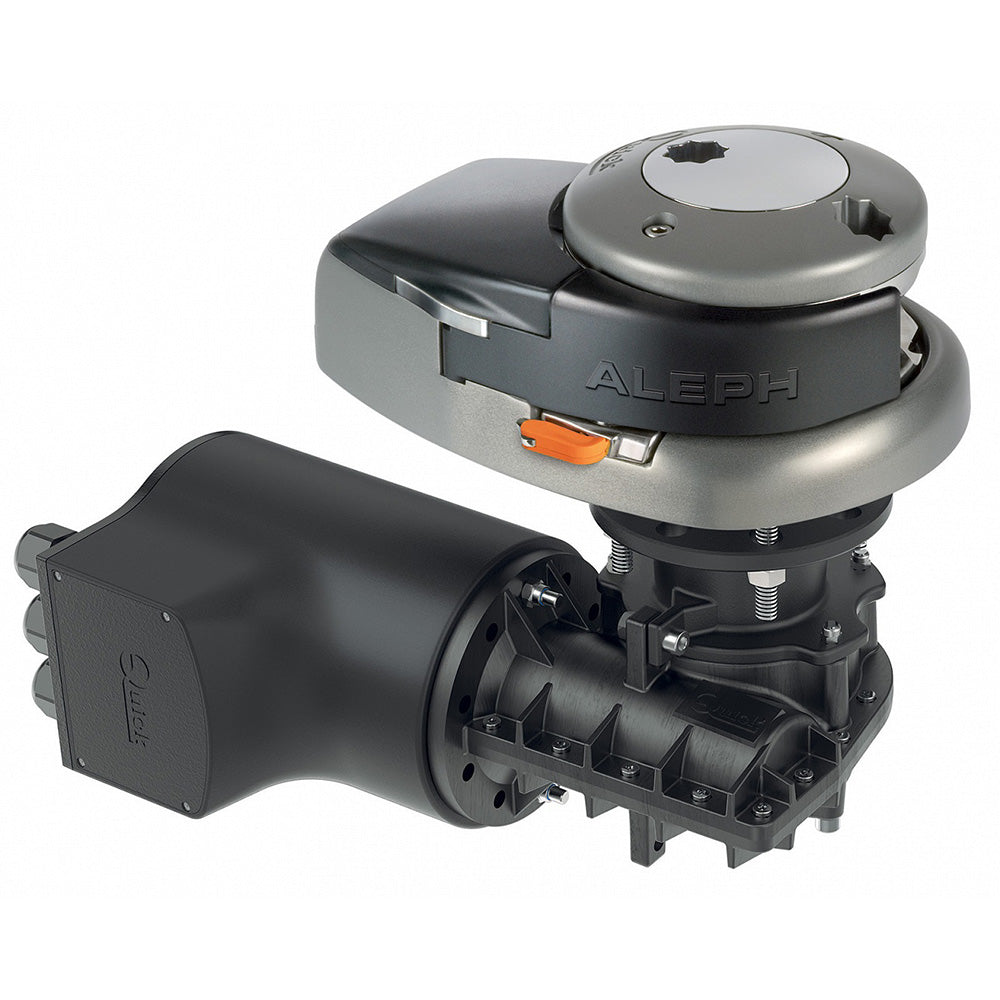

Quick Aleph AL3 1512 Windlass - 12V, 1500W, 10mm Gypsy to 5/8" Rope [FSAL15120010A00]
![Quick Aleph AL3 1512 Windlass - 12V, 1500W, 10mm Gypsy to 5/8" Rope [FSAL15120010A00]](http://costamarinepr.com/cdn/shop/files/115084XL.jpg?v=1786408929&width=3840)
Quick Aleph AL3 1512 Windlass - 12V, 1500W, 10mm Gypsy to 5/8" Rope [FSAL15120010A00]
Product Details
Aleph AL3 1512 Windlass - 12V, 1500W, 10mm Gypsy to 5/8" Rope
The AL3 vertical windlass features a hard-anodized aluminum construction, an IP67 watertight motor, an inspection lid, and an emergency manual lift system, making it suitable for boats with limited deck space. The unit includes a gearbox, solenoid, clutch handle, and mounting hardware.
Features:
- For 39-49' Boats
- Vertical windlasses
- 10mm - 3/8" gypsy
- Requires 5/8" three-strand polyester rope
- Includes T6315-12 Solenoid
- Base in anodized aluminium with hard oxide
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Emergency manual lift system
- Supplied with pressure lever
- Inspection lid
- IP67 watertight motor
- Anodized aluminium gearbox (1500W)
Specifications:
- Motor power - 1500W
- Motor supply voltage - 12V
- Maximum pull - 1100 Kg (2425 lb)
- Maximum working load - 470 kg (1036 lb
- Working load - 160 Kg (353 lb)
- Current absorption @ working load - 155 A
- Weight - 45.9 lbs
