Raymarine Hydraulic Linear Drive Type 3 - 24V [M81203]

Hydraulic Linear Drive Type 3 - 24V

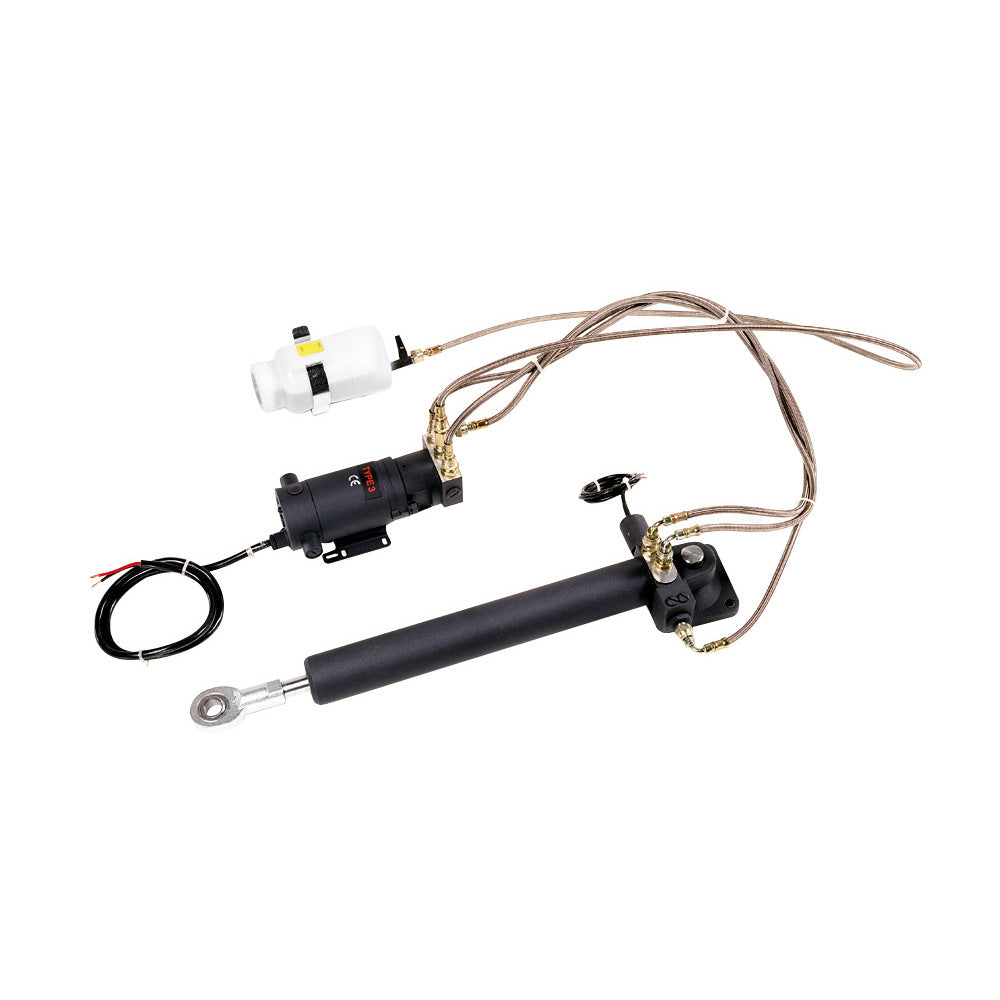

The hydraulic linear drive system is designed for boats with existing mechanical steering systems, not hydraulic steering systems. It provides a totally isolated autopilot steering system consisting of:

Hydraulic ram: a self-contained autopilot steeringcylinder with a load limiting system and a built in clutch (to allow friction-free steering when the autopilot is not in use).

Reversing hydraulic pump: powers the hydraulic ram.

Hydraulic fluid reservoir: supplies hydraulic fluid to the system.

Specifications:

• Type: Pumps/Drives
• Box Dimensions: 10"H x 14"W x 36"L WT: 30.8 lbs
• UPC: 023193812038
