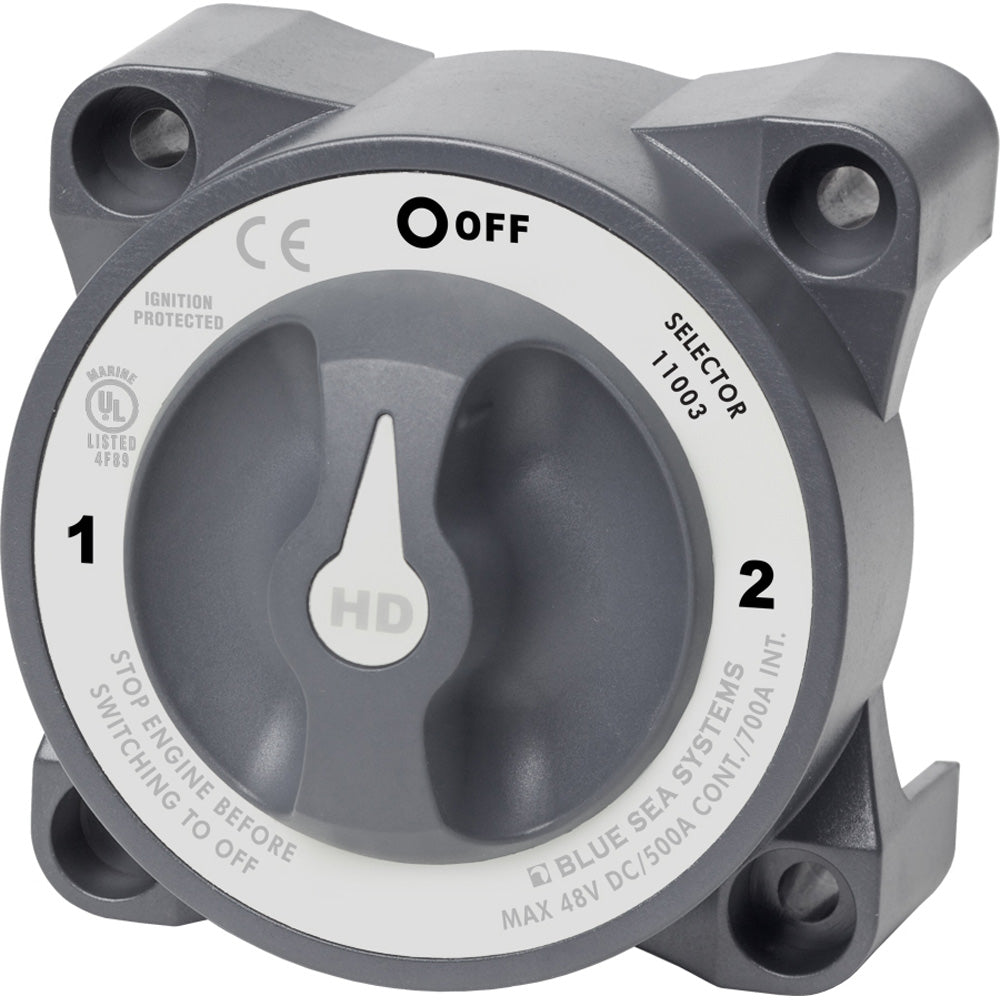

Blue Sea 11003 HD-Series Battery Switch w/Alternator Field Disconnect - 3-Position [11003]
![Blue Sea 11003 HD-Series Battery Switch w/Alternator Field Disconnect - 3-Position [11003]](http://costamarinepr.com/cdn/shop/products/34970XL.jpg?v=1663378106&width=3840)
![Blue Sea 11003 HD-Series Battery Switch w/Alternator Field Disconnect - 3-Position [11003]](http://costamarinepr.com/cdn/shop/products/34970BXL.jpg?v=1663378108&width=3840)
![Blue Sea 11003 HD-Series Battery Switch w/Alternator Field Disconnect - 3-Position [11003]](http://costamarinepr.com/cdn/shop/products/34970CXL.jpg?v=1663378110&width=3840)
Blue Sea 11003 HD-Series Battery Switch w/Alternator Field Disconnect - 3-Position [11003]
Product Details
11003
Features:
- Meets American Boat and Yacht Council (ABYC) requirements for battery switches
- Ignition protected safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
- Accepts two 4/0 AWG (95mm) battery cables
- M12 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 1/2" and M12 ring terminals
- 7/8" (22.22mm) stud length to accept multiple cable terminals
- Tactile textures indicate knob position by feel only
- Case design allows surface or rear panel mounting
- 10 Sec: 2750A
- AFD: Yes
- Positions: 3
- Box Dimensions: 3"H x 7"W x 9"L WT: 1.3 lbs
- UPC: 632085110031
60 Sec: 1150A
5 Min: 700A
Continuous: 500A
Max Voltage: 32V DC
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
Brochure (pdf)
