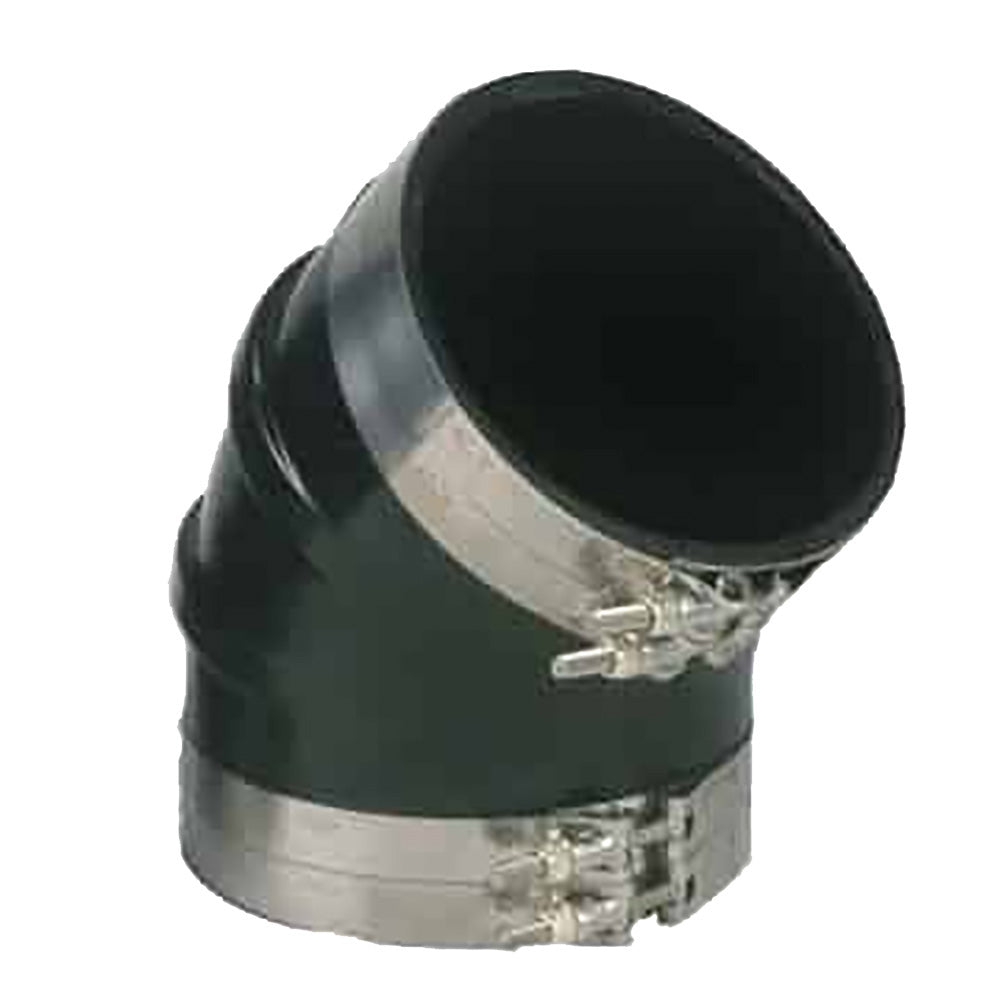

Trident Marine 5" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow w/4 T-Bolt Clamps [TRL-545-S/S]
![Trident Marine 5" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow w/4 T-Bolt Clamps [TRL-545-S/S]](http://costamarinepr.com/cdn/shop/files/100829XL.jpg?v=1695395306&width=3840)
![Trident Marine 5" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow w/4 T-Bolt Clamps [TRL-545-S/S]](http://costamarinepr.com/cdn/shop/files/100829BXL.jpg?v=1695395307&width=3840)
Trident Marine 5" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow w/4 T-Bolt Clamps [TRL-545-S/S]
Product Details
5" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps
Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.
Features:
- Four stainless steel clamps are included
- This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
- Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards)
- Black high-temp EDPM rubber
Construction:
- Color: Black
- Reinforcement: Reinforcing ribs on 6” I.D. and above
- Temperature Range: up to 250°F (121°C)
Specifications:
- Inner Diameter: (inch) 5” / (mm) 127
- Outer Diamter: (inch) 5.5" / (mm) 139.7

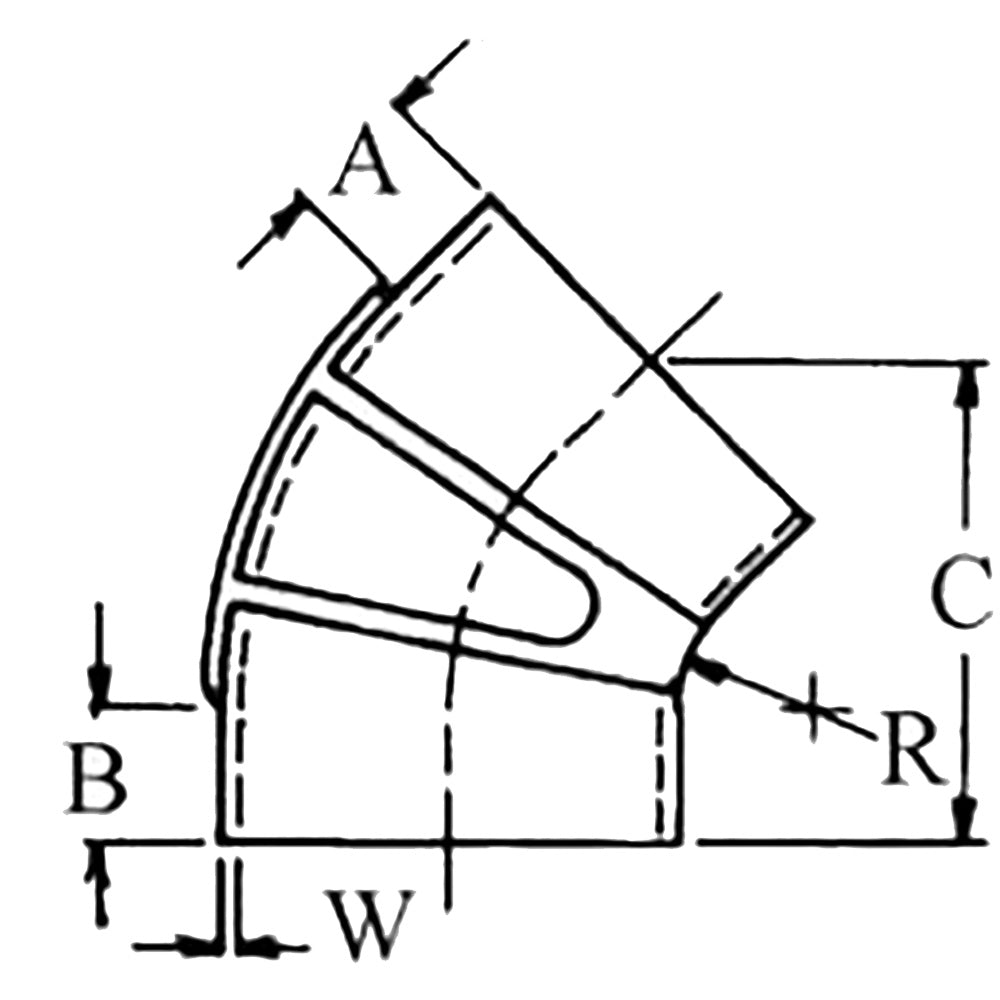

- A: (inch) 1.62” / (mm) 48.1
- B: (inch) 1.62” / (mm) 48.1
- C: (inch) 5.75” / (mm) 146
- W: (inch) 0.25” / (mm) 6.35
- Elbow Degree: 45 degrees
- Weight: (Lb/Ea) 1.05 / (Kg/Ea) 0.478
Specifications:
- ID Diameter (inches): 5"
- Box Dimensions: 8"H x 8"W x 9"L WT: 2.5 lbs
- UPC: 704917000466
Quick Guide (pdf)
