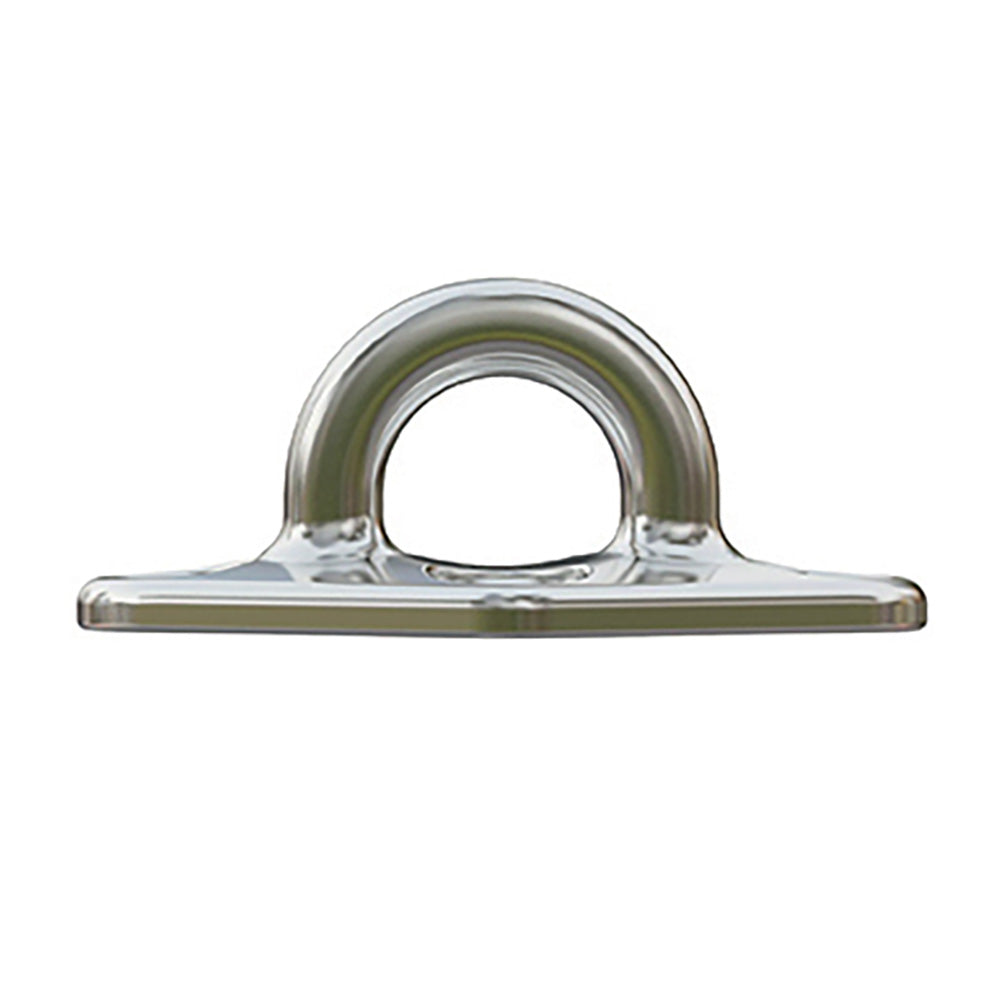

Wichard Diamond Pad Eye - Round - 98mm Length (3-55/64") - M8 Screw [6646W]
Product Details
Diamond Pad Eye - Round - 98mm Length (3-55/64") - M8 Screw
Features:
- Mechanical resistance versus corrosion resistance ratio
- Optimized dimensions
- For M8 screw
Applications:
- Mast foot blocks
- Reefing blocks
- Various fastenings
Specifications:
- Materials: Duplex stainless steel grade
- Working Load: (lb) 9259.4 / (kg) 4200
- Breaking Load: (lb) 24691.7 / (kg) 11200
- Weight: (lb) 0.551 / (g) 250
- W.L 1 (90 degrees): (lb) 9259.4 / (kg) 4200
- W.L 2 (45 degrees): (lb) 9259.4 / (kg) 4200
- W.L 3 (0 degrees): (lb) 9038.9 / (kg) 4100
- B.L 1 (90 degrees): (lb) 24691.7 / (kg) 11200
- B.L 2 (45 degrees): (lb) 24691.7 / (kg) 11200
- B.L 3 (0 degrees): (lb) 24250.8 / (kg) 11000

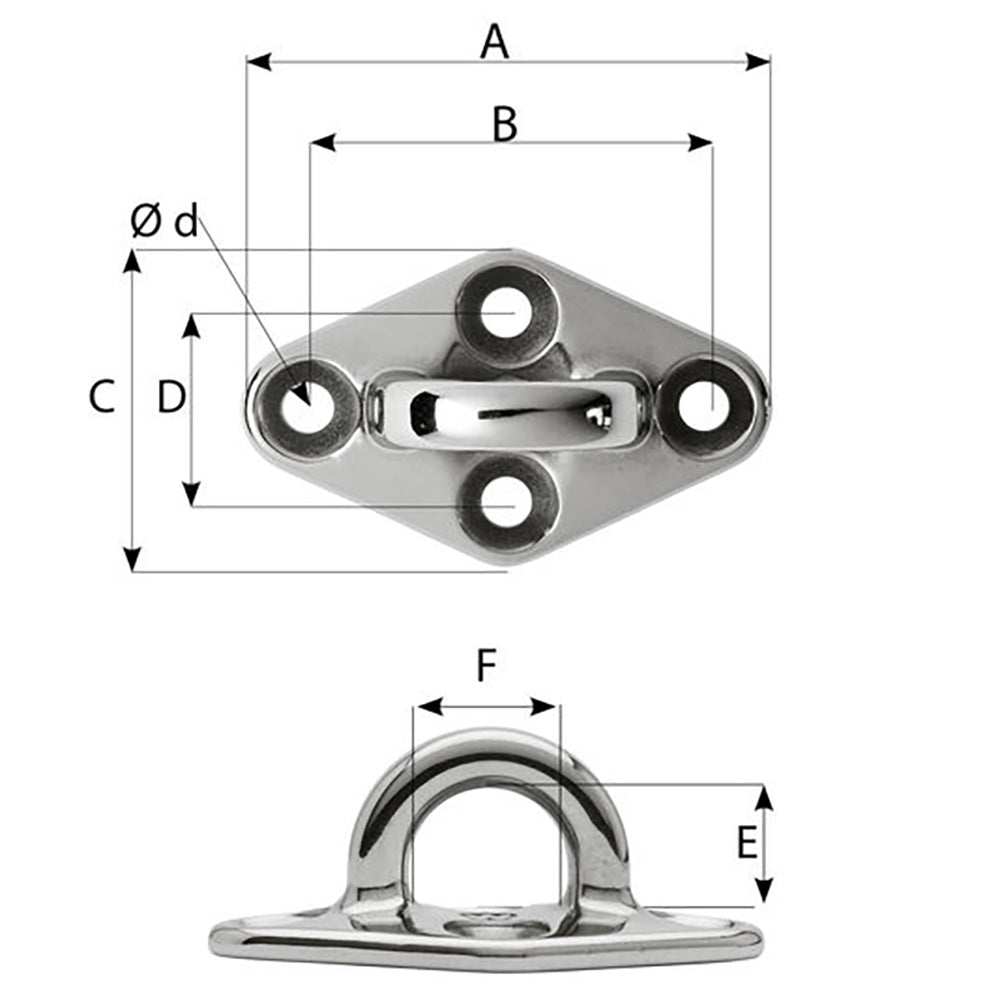

Dimensions:
- A: (inch) 3 55/64" / (mm) 98
- B: (inch) 2 7/8" / (mm) 73
- C: (inch) 2 21/64" / (mm) 59
- D: (inch) 1 3/8" / (mm) 35
- E: (inch) 55/64" / (mm) 22
- F: (inch) 1 1/16" / (mm) 27
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
