Wichard Self-Locking Twisted Shackle - 10mm Diameter - 13/32" [1225W]
Product Details

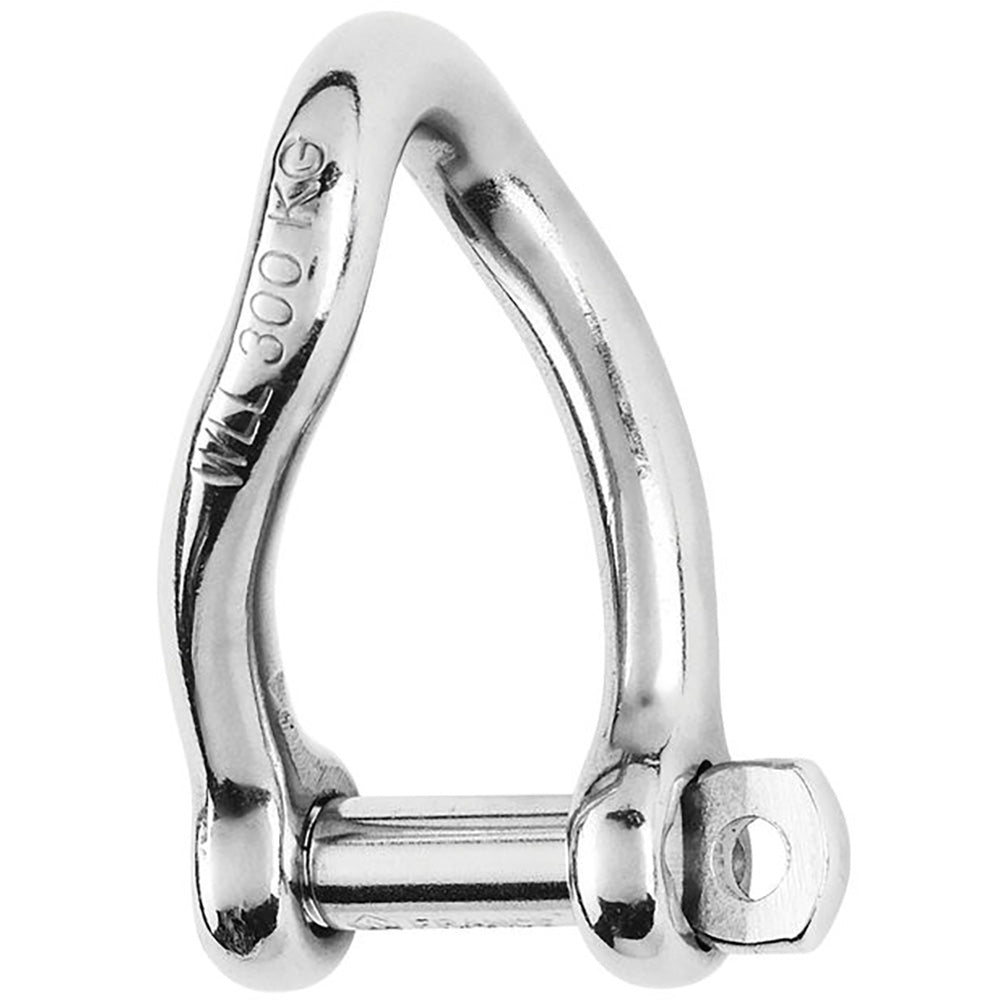

Self-Locking Twisted Shackle - Diameter 10mm - 13/32"
Features:
- Self-locking twisted shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Perfect for applications where a 90° angle twist setup is required
- Often used to attach an unarticulated part (block on a rail) or on purchases
Specifications:
- Materials: 316 stainless steel grade
- Working load: (lb) 3170 / (kg) 1440
- Breaking load: (lb) 9920 / (kg) 4500
- Weight: (lb) 0.28 / (g) 127

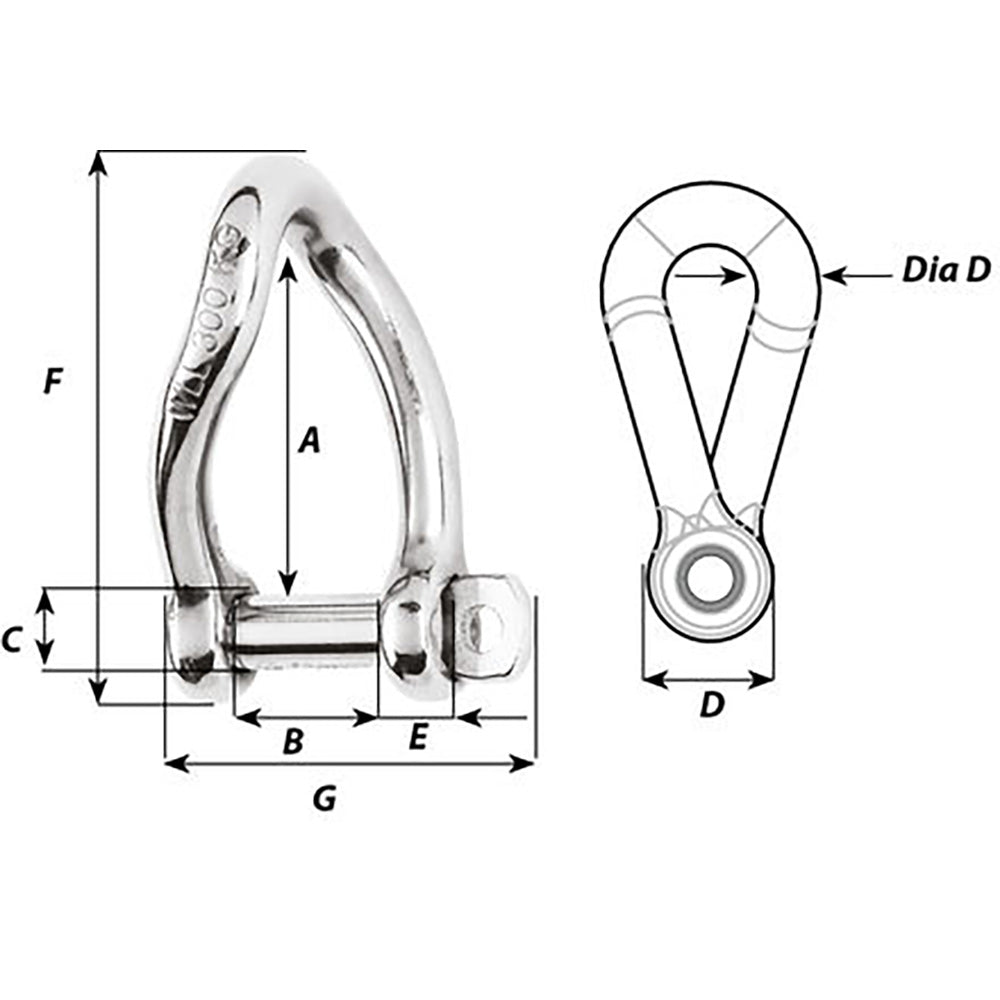

Dimensions:
- A: (inch) 1 31/32" / (mm) 50
- B: (inch) 25/32" / (mm) 20
- C: (inch) 25/64" / (mm) 10
- D: (inch) 3/4" / (mm) 19
- D diameter: (inch) 25/64" / (mm) 10
- E: (inch) 23/64" / (mm) 9
- F: (inch) 2 29/32" / (mm) 74
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
